Simple Swingweight System XLF

The "XLF" is the final version of our "XL" series. Version XLF has all the same features as our previous versions. We made the butt end support taller to accommodate grip cap diameters up to 35mm. The XLF is still easy to assemble with 1 screw. The XLF shares as many components as possible with the Simple Swingweight VF to make production more streamlined. It is still “eXtra Long” to accommodate a grip end support so you don’t have to measure 14”, the fixture does it for you.

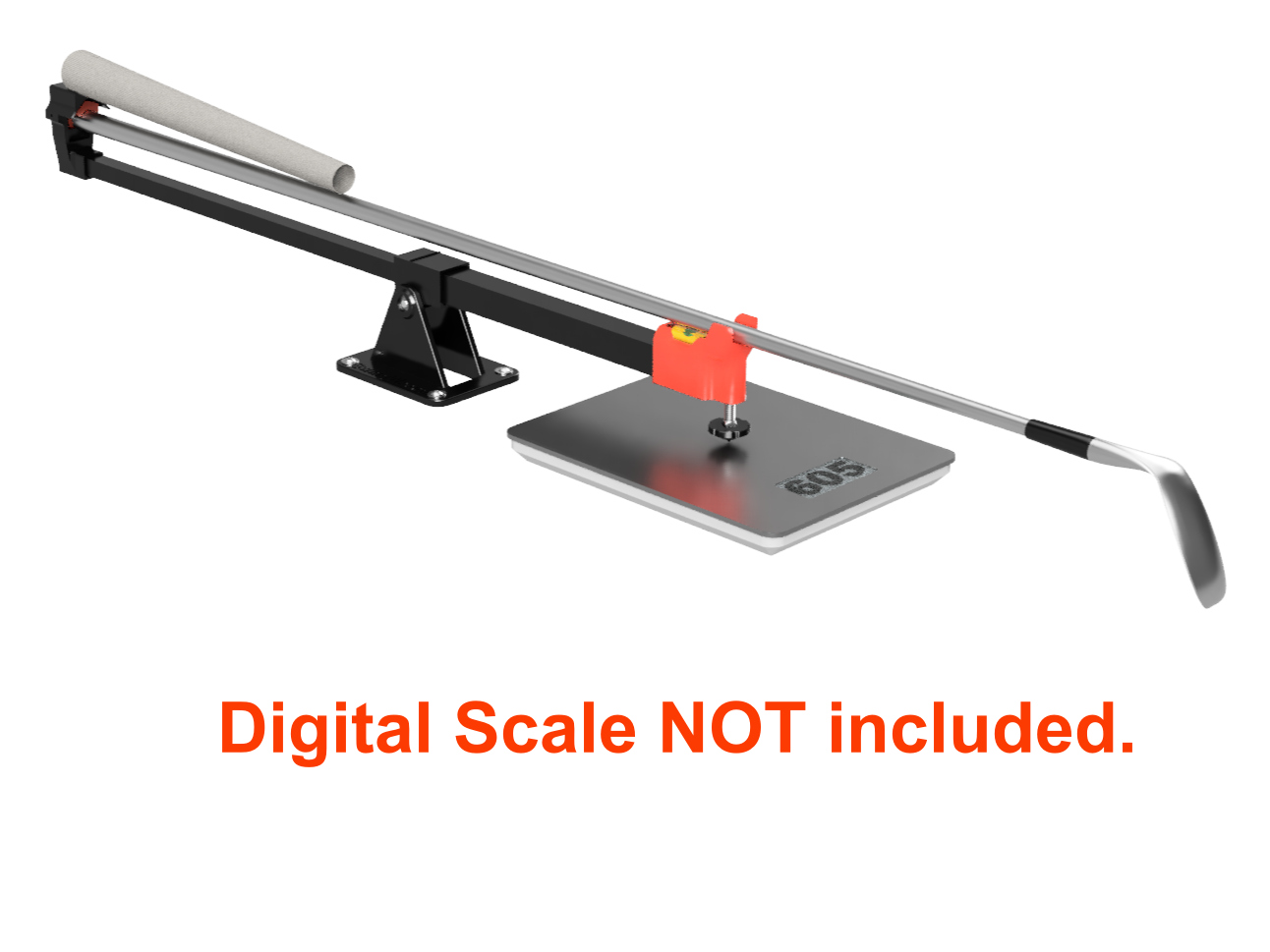

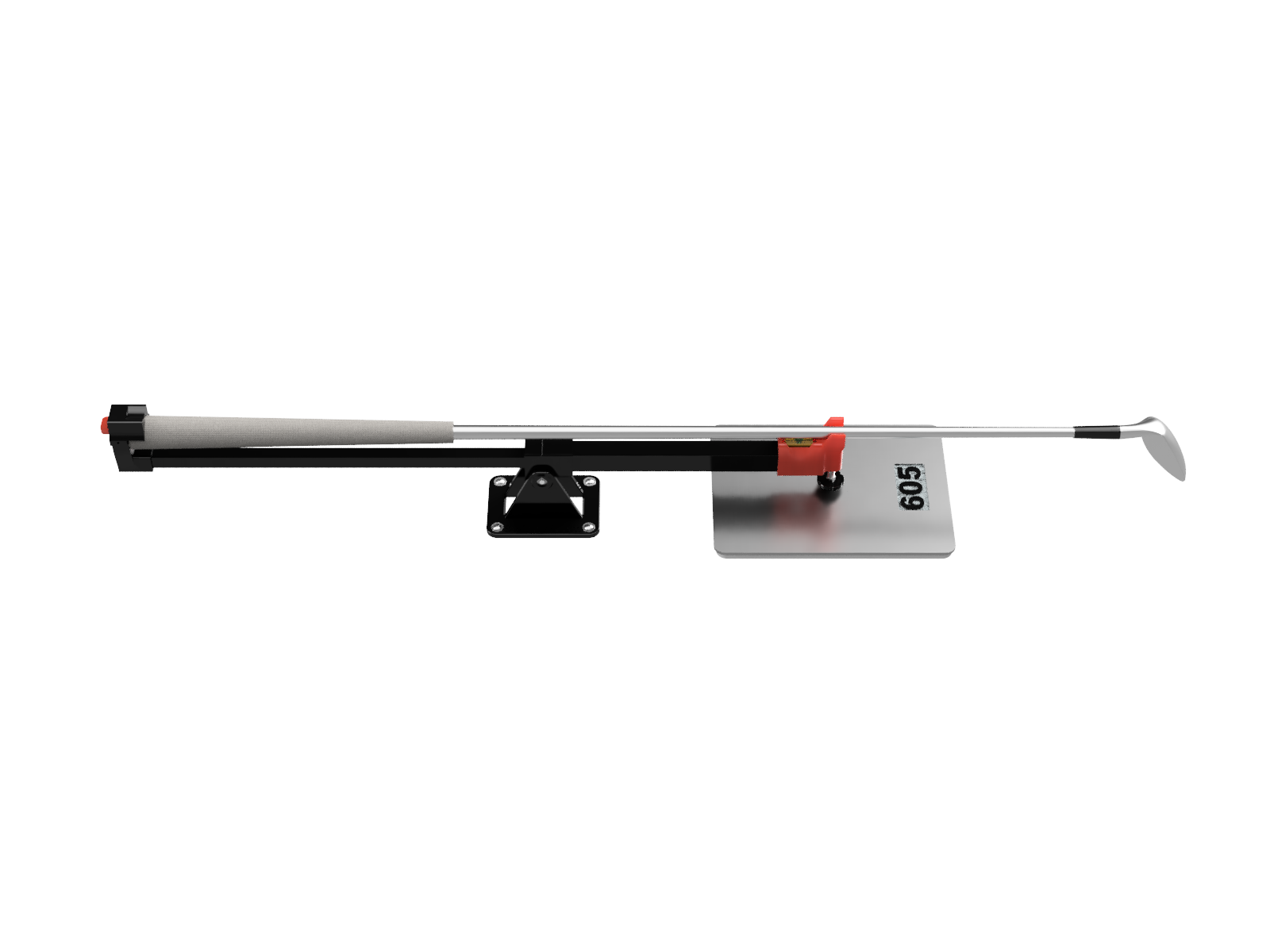

The XLF incorporates a 2 piece powder coated aluminum arm for increased rigidity with 3D printed ends and fulcrum mounting base. We’ve incorporated a knob and needle at the end of the adjustment foot to make adjustment smoother. We’ve designed this model the allow the user to set it up with the club head pointing left or right as the bubble level sets on top and is visible from both sides.

A unique feature is the grip end support. You can use it to measure a finished club with the grip installed or by pressing a small lever on the back of the grip end support you’ll expose a built it “gripless” adapter. The grip end support has a built-in support to temporarily place a grip to estimate the finished club swingweight.

You’ll never find a more simple way to measure a golf clubs swingweight. Ball bearing supported fulcrum with a built in bubble level. The adjustable leg makes leveling the arm a snap. Once the fixture is set up, you can add or remove weight and see the resulting impact on the club’s swingweight in real time.

Always use a quality digital scale for the most accurate readings. Look for a scale with a solid surface on top. These scales have multiple load cells attached to the feet of the scale which makes these type of scales better at handling a concentrated load. Avoid the scales with an elevated top as they have a single load cell and do not handle concentrated, off center loads accurately.

Images are computer renderings. Uses one digital gram scale (not included).

Simple Swingweight System XLF Instructions
