Pro-Touch 4 Digital Swingweight Scale
Pro-Touch 4 Digital Swingweight Scale
Couldn't load pickup availability

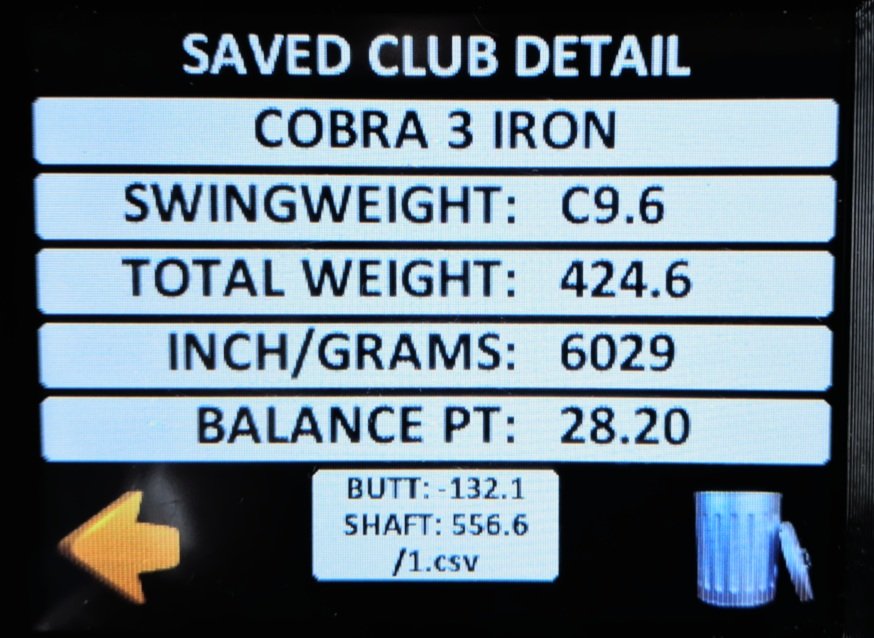

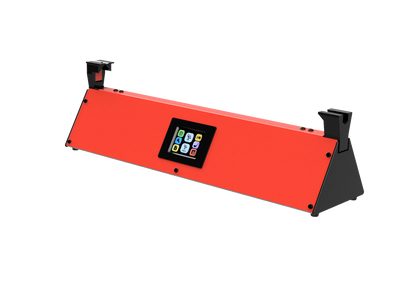

The Pro-Touch 4 is the latest of the Pro-Touch Steel product! It is a fully digital swingweight system with a color touchscreen. No moving parts. No fiddling with calibration (but you can if you like!). Just set your club in the fixture and instantly get Swingweight to 0.1 and inch/grams to 1 gram. Also gives you total weight and the club's balance point.

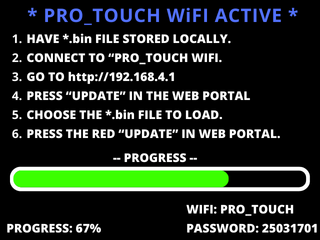

The Pro-Touch 4 has some new features. We’ve modified the graphics of the touch screen to make room for OTA (over the air) updating. Now as we enhance our product features, you can install the latest firmware wirelessly. We still have the ability to save and recall up to 50 clubs in the scales memory. If you are using a thermal printer, we’ve expanded the screens it works with and improved the printer graphics.

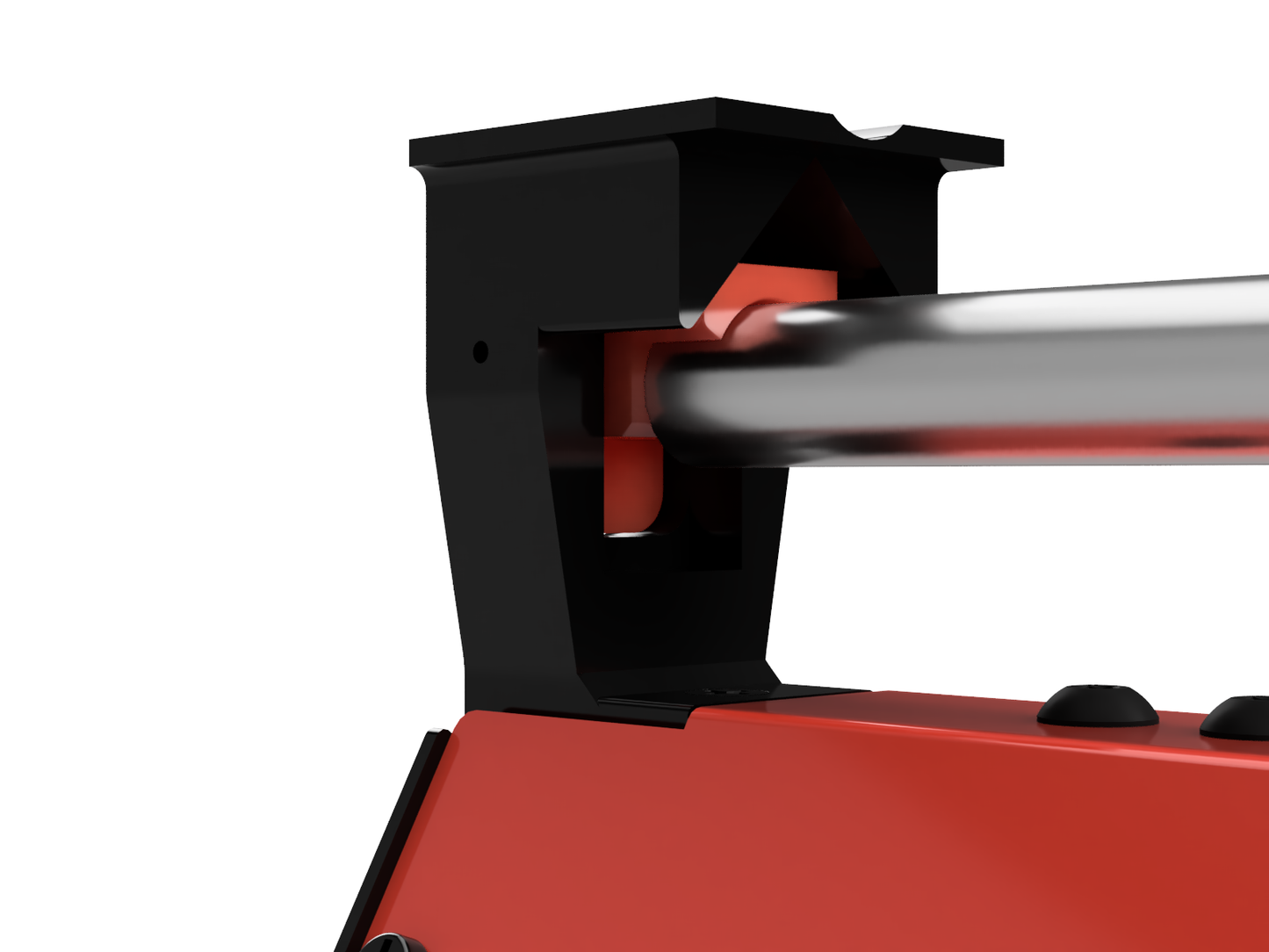

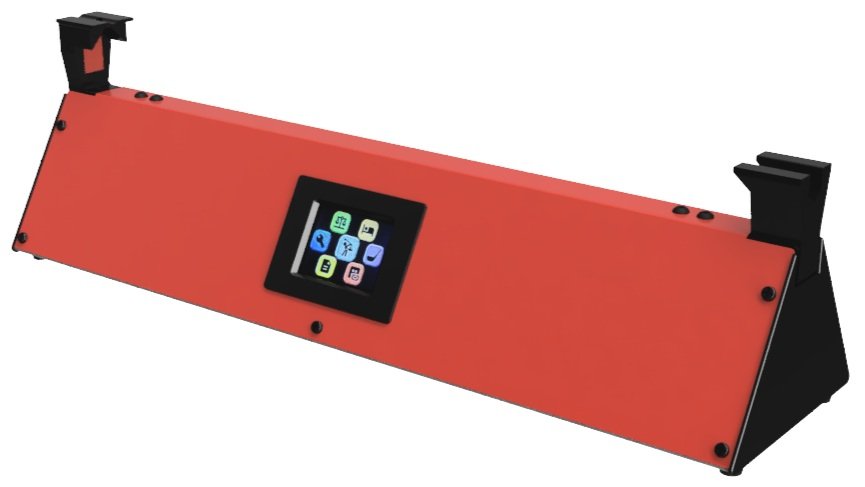

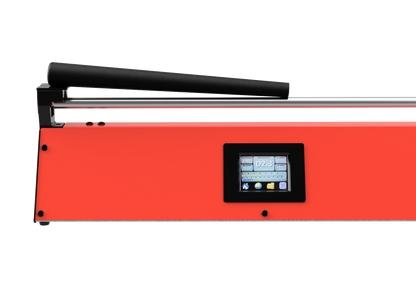

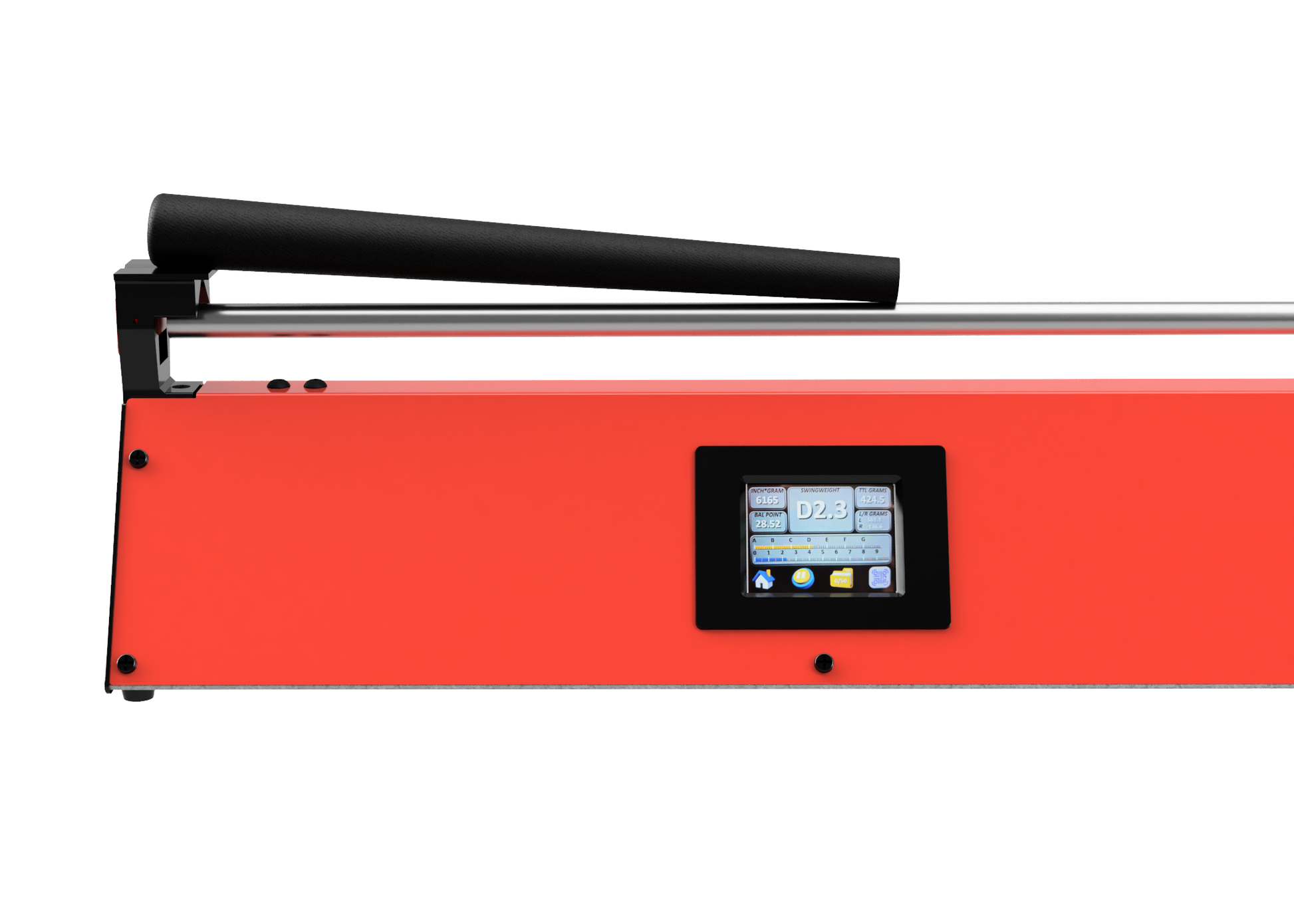

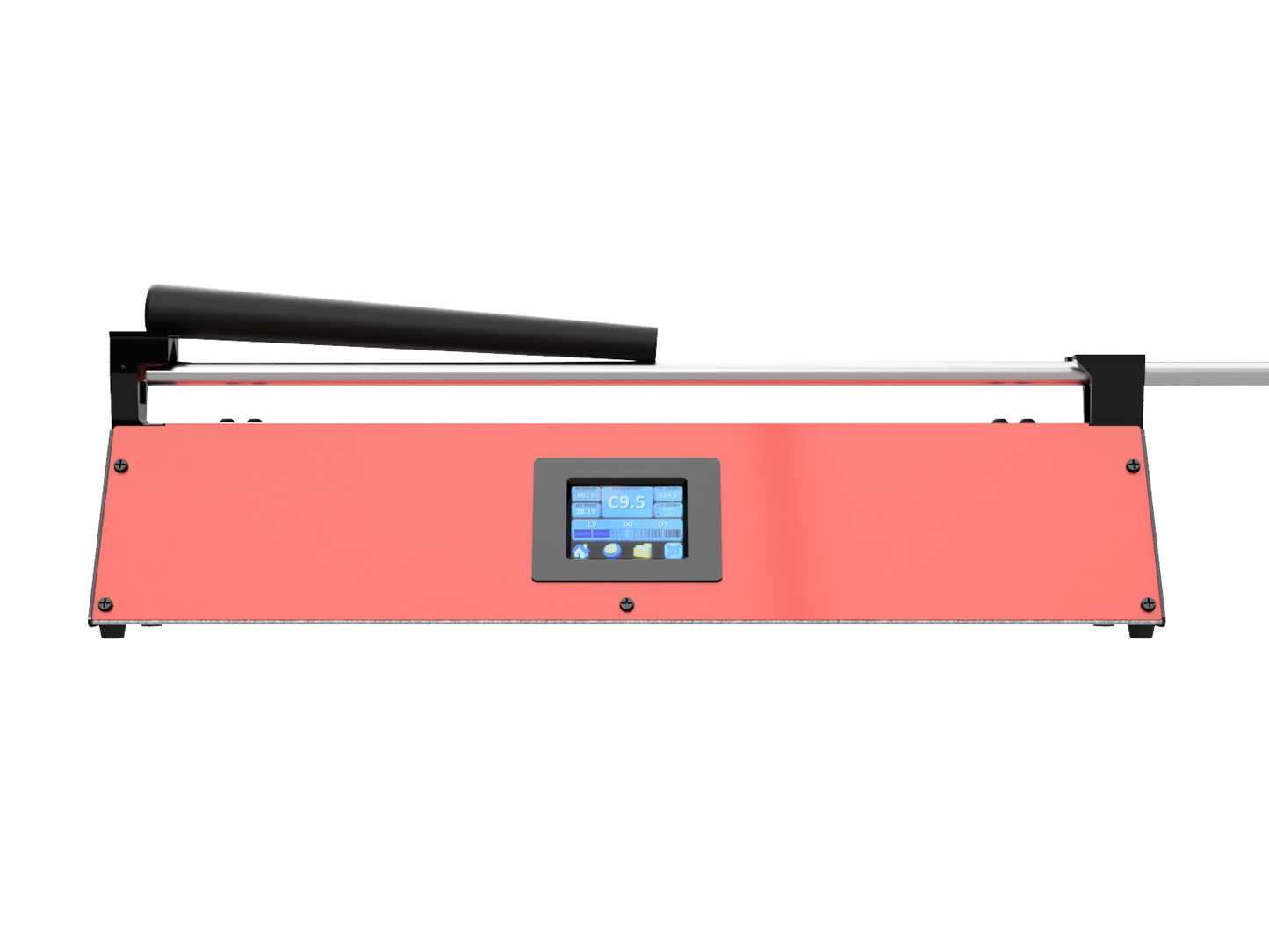

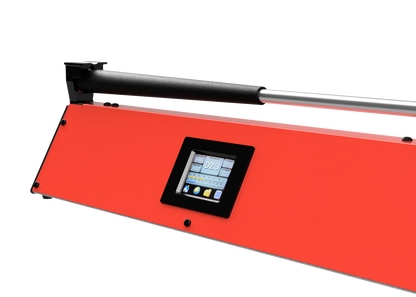

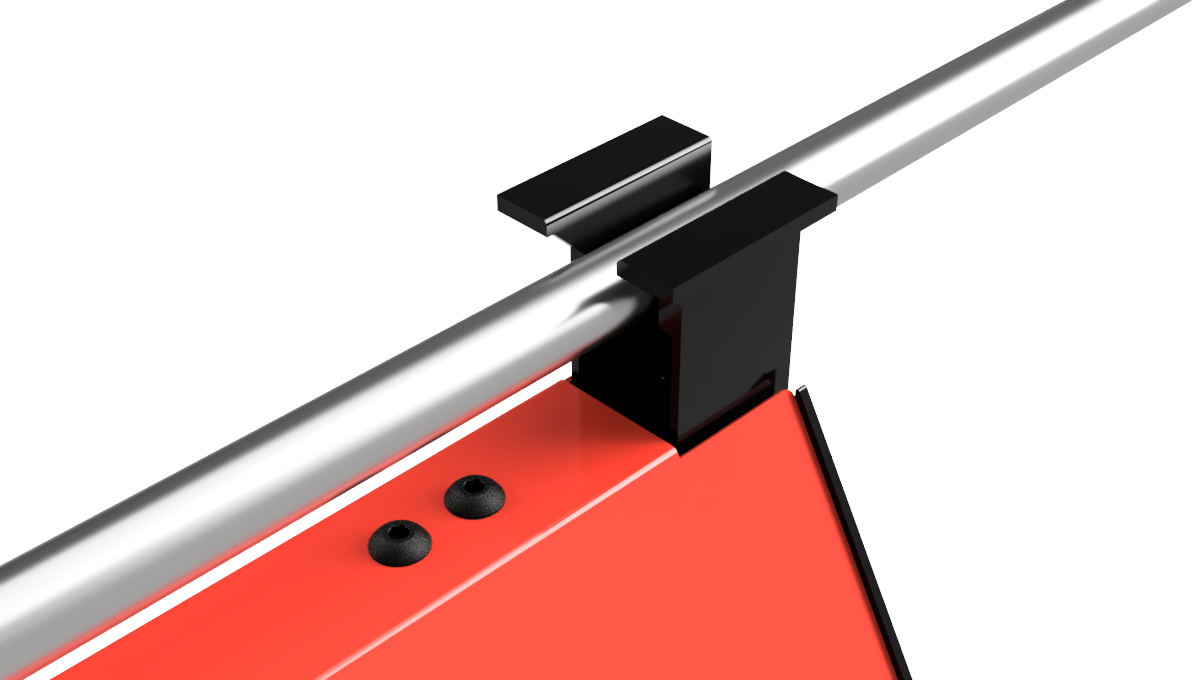

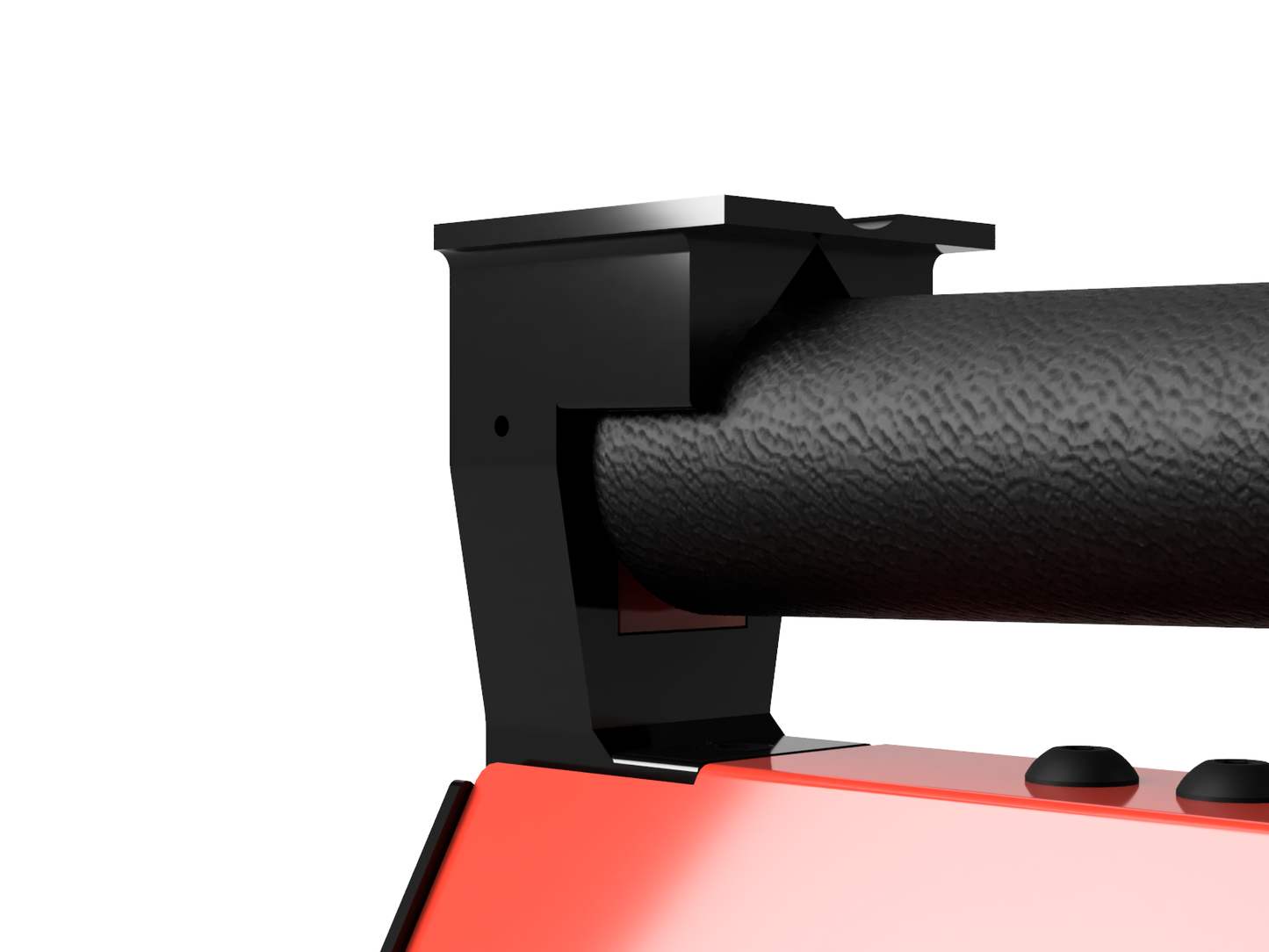

The upper case is powder coated 20 gauge (.9mm) galvanized steel. The bottom case is also 20 gauge galvanized steel (un-painted). The end caps and club holders are 3D printed plastic. We’ve taken extreme care to make sure they all look and work great. The club holders are installed (by the user) on either end. That allows the user to set up the scale to allow the clubhead to point right or left. Each unit comes with two styles of grip end supports (pin style and hood style). Two of the supports have built in “platforms” to make it easier to weigh objects on the fly. One of the grip supports comes with a built in “grip-less” adapter to measure a club prior to grip installation.

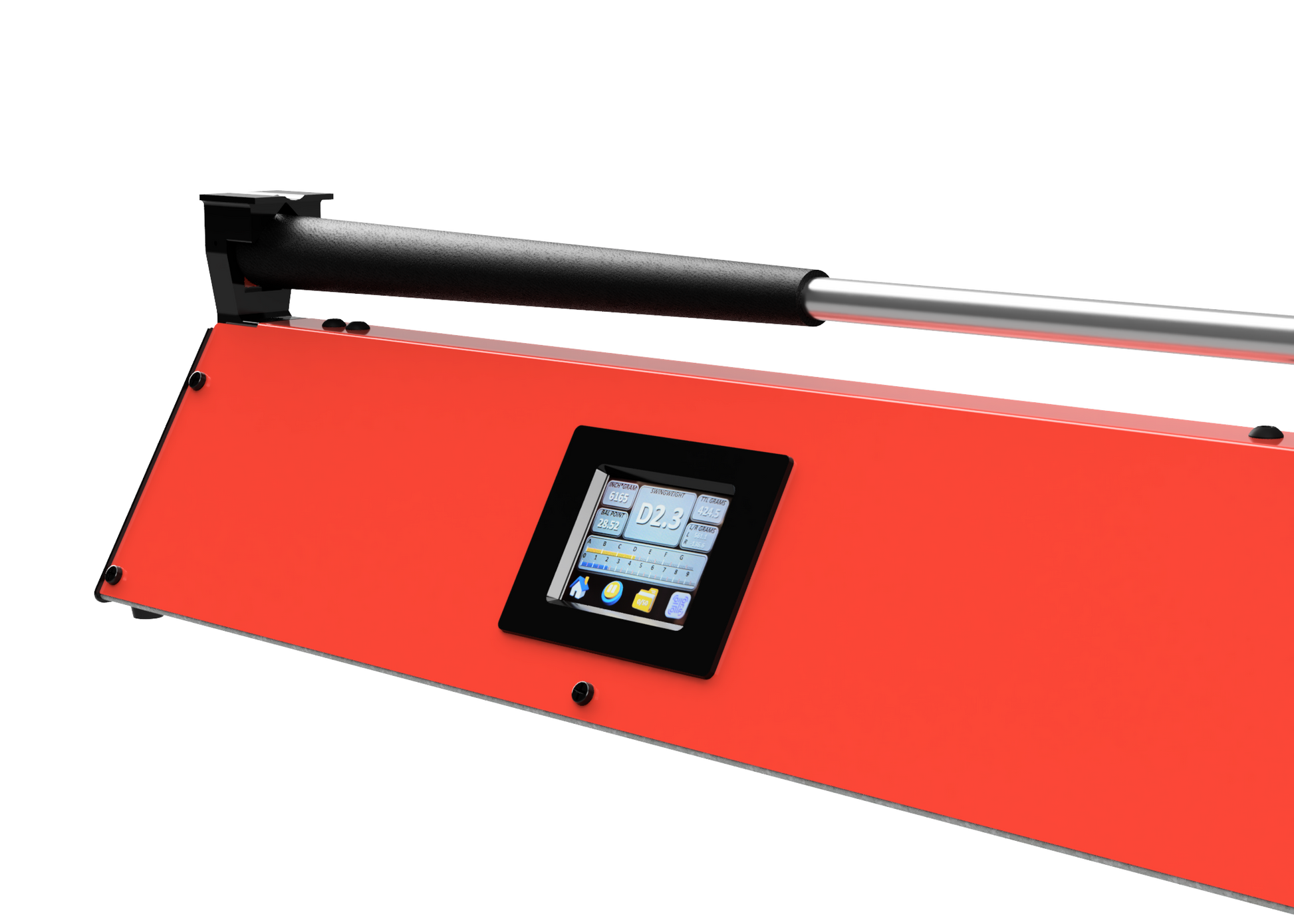

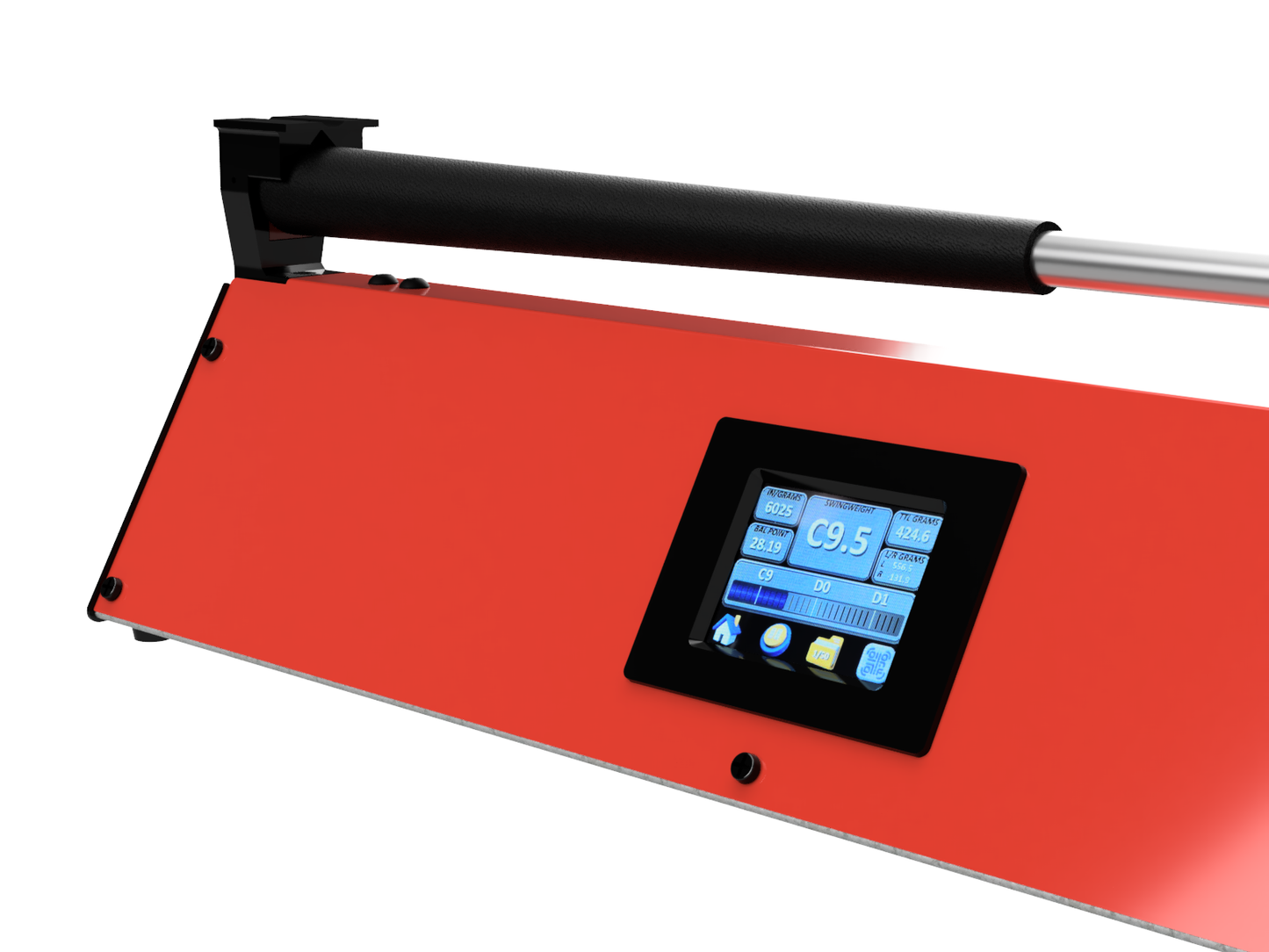

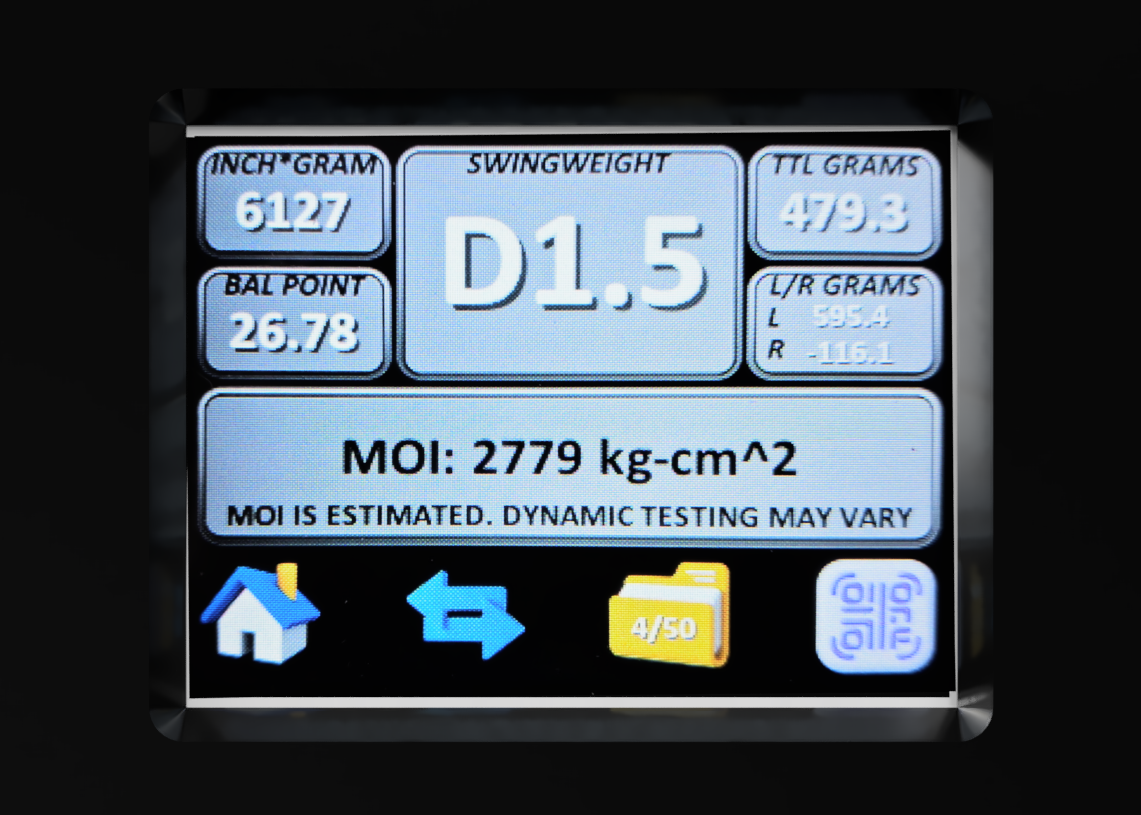

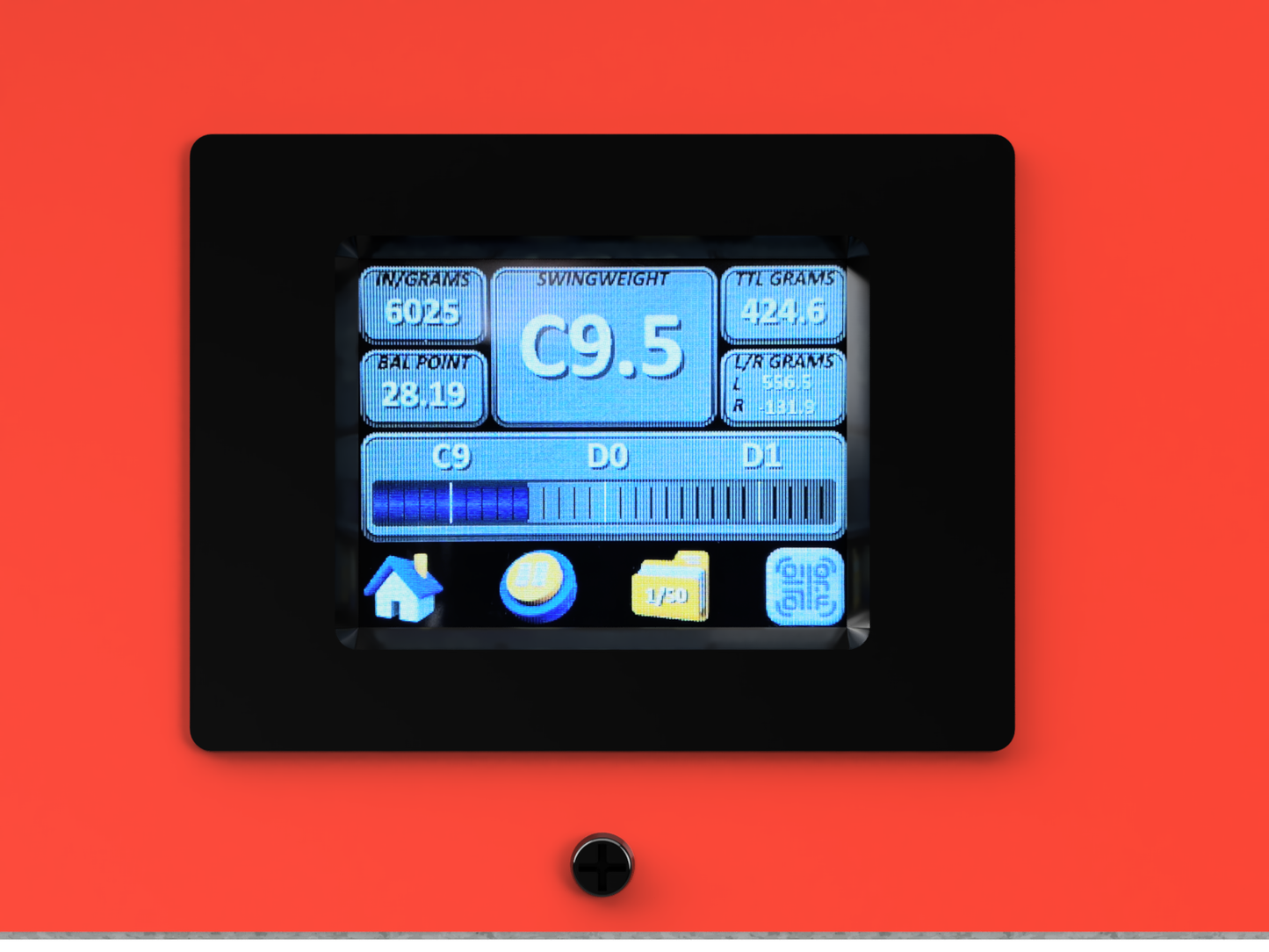

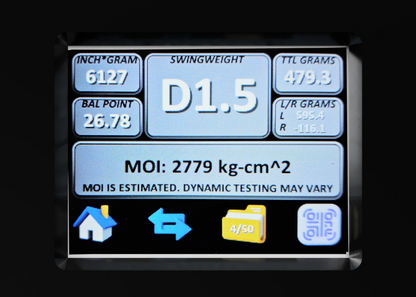

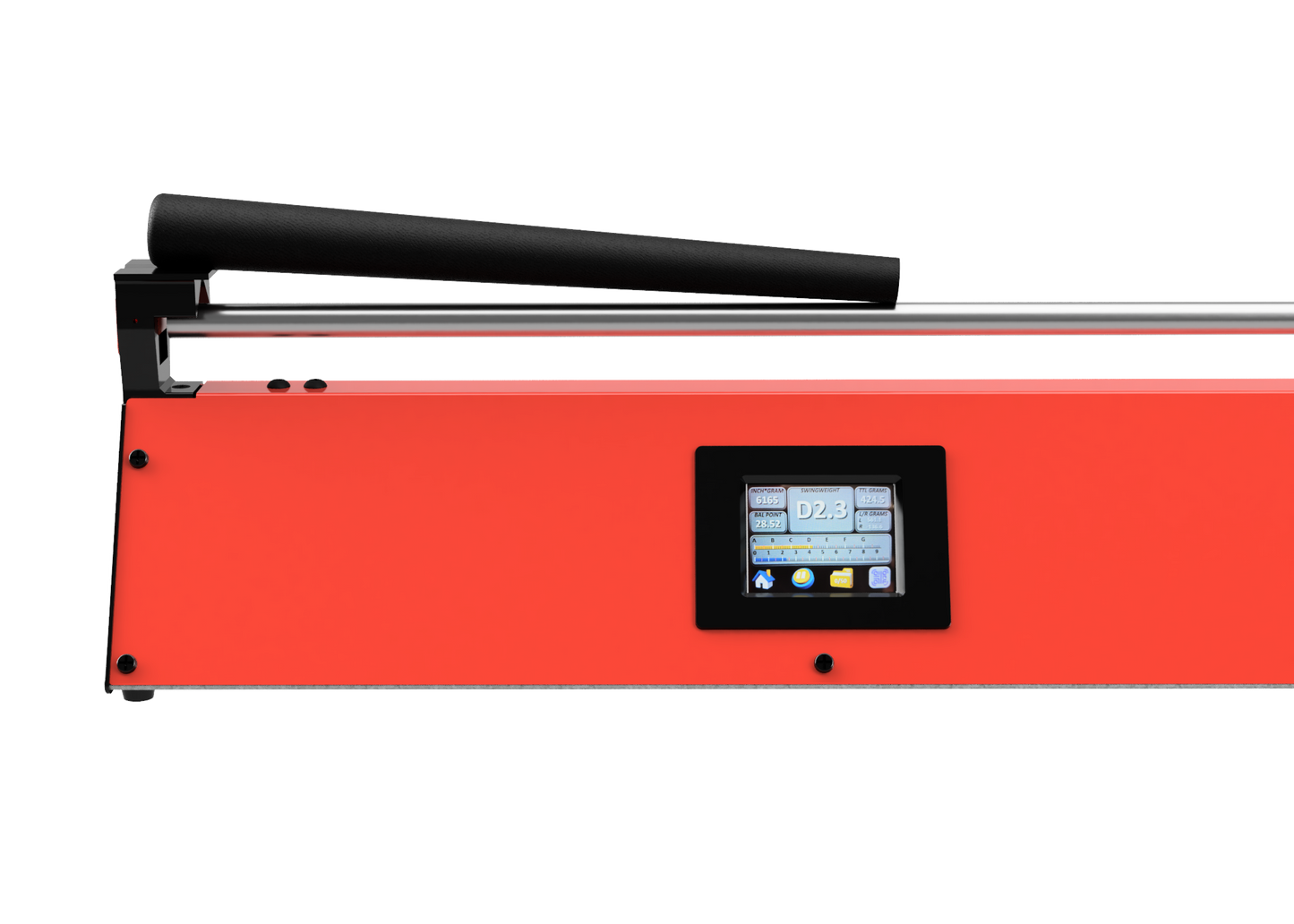

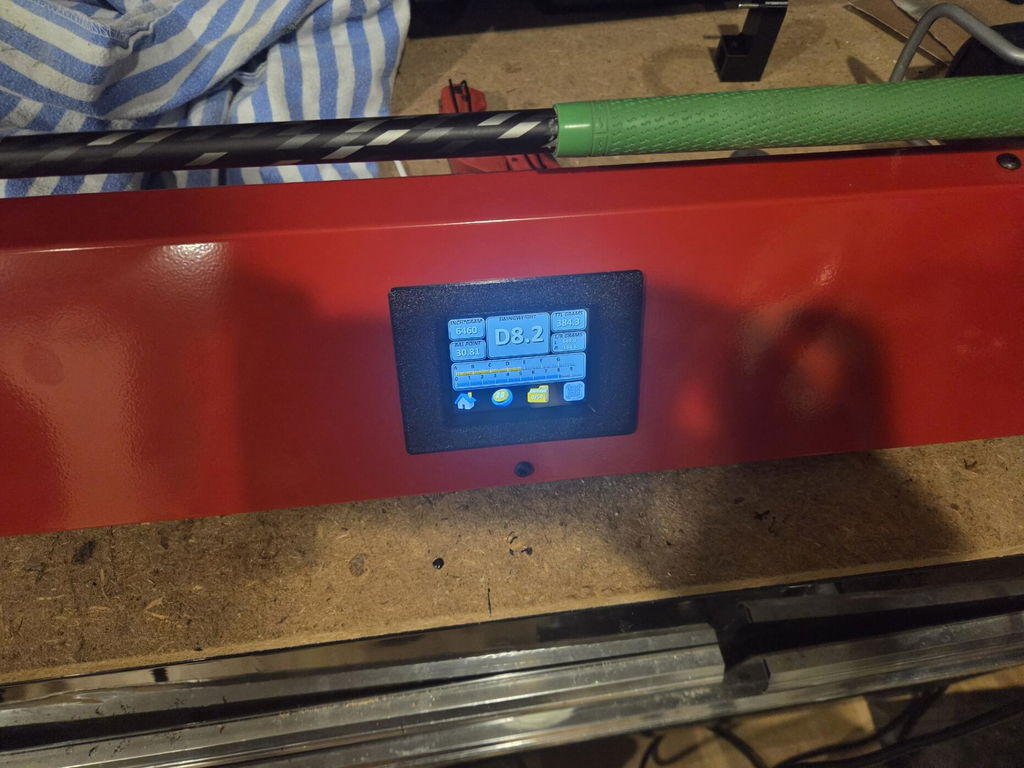

The Swingweight screen includes all of the club’s measurements and a new simulated analog bar graph gauge to give a visual indication down to 1/10 of a swingweight. The touch screen can be pressed with a finger or a stylus (included). We’ve included a PAUSE mode to the swingweight screen to allow you to freeze the current reading.
The QR code screen is expanded to give more detailed club information and you can enter a club description as a part of the QR screen. The QR Code screen allows you to scan and save your club readings via a smartphone (or supported printer)

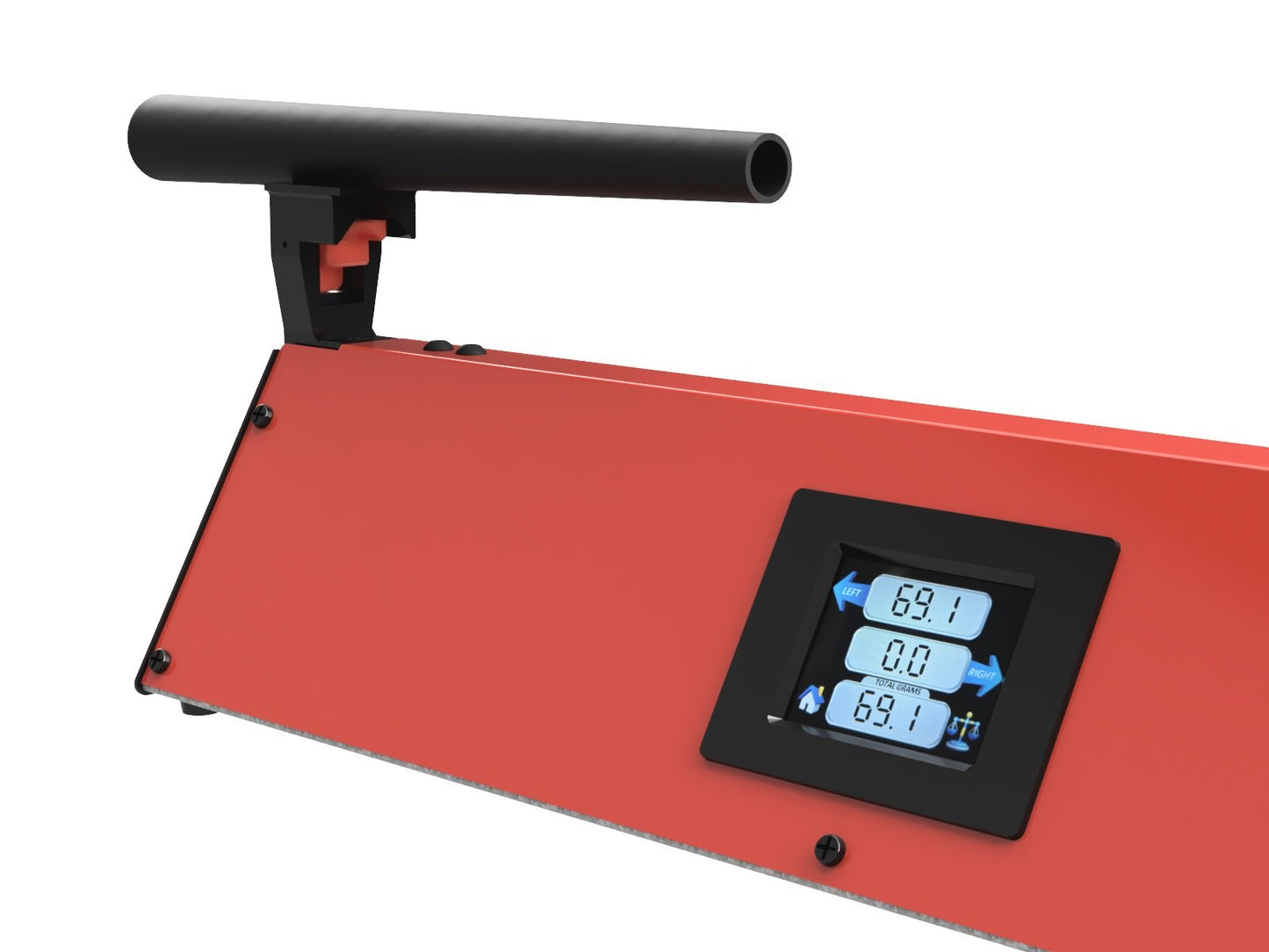

The “USE SCALES” screen allows you to measure objects with the right and left load cells. It also gives a combined weight of the the 2 cells. It has a tare icon to let you zero the scales.
Each unit comes with 2 dedicated precision full bridge load cells matched with 2 calibrated 24 bit A/D converters and a dual-core ESP32 microprocessor running at 240mhz to handle the calculations. The full color 2.8” TFT touch screen shows the results in real time. Each scale comes with a microUSB power supply and a two built in weight holders to allow the user to use the scale’s load cells to weigh objects less than 1Kg.

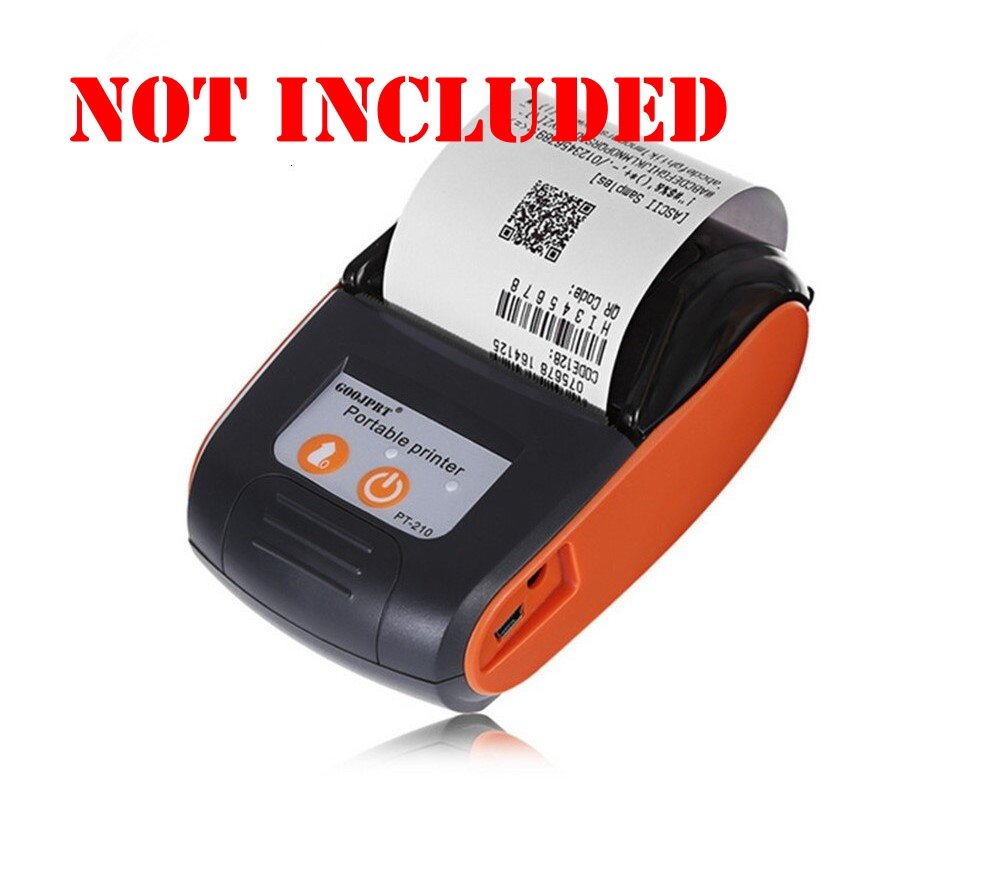

We support the PT-210 Bluetooth thermal printers. This allows users to print out swingweight results to a battery powered thermal receipt printer. It’s free to use but as printers change, it’s functionality may become obsolete. Printer is not included.
Designed, programmed and assembled in the USA with components from all over the world. We think you’ll be impressed.
FREE USA SHIPPING TOO!
